CD series rotary screen printing machine is a type of magnetic textile printing machine possessing a repeat size of 640mm-1206mm. Till now, we have manufactured and sold more than 600 sets to clients all around the world.
Application
CD series textile printing machine could be used to print natural fabrics, chemical fabrics, knitted fabrics and woven fabrics.
Specifications of Rotary Screen Printing Machine
| Application | Printing on natural fabrics, chemical fabrics, knitted fabrics and woven fabrics. |
| Fabric weight | 50g/m2-600g/m2 |
| Printing width |
1850mm(200 model) 2050mm(220 model) 2200mm(240 model) 2400mm(260 model) 2600mm(280 model) 2800mm(300 model) 3000mm(320 model) 3200mm(340 model) |
| Printing colors |
8 color printing 10 color printing 12 color printing 14 color printing 16 color printing 20 color printing 24 color printing |
| Repeat size | 640mm/ 820mm/ 914mm/ 1018mm/ 1168mm |
| Printing speed | 4-80m/min |
| Type of screen head driving | Independent transmission |
| Registering accuracy | ±0.1mm |
| Registering adjustment range | Vertical: Unlimited, horizontal: ± 10mm, diagonal: ±5mm |
| Drying method | Three-layer four-outlet hot air drying system |
| Chamber of the dryer | 2-7 chambers, compact type, loose type |
| Heat source | Steam thermal oil natural gas |
| Fabric-entry and fabric-exit model | Open-width |
| Machine type | Left hand type / Right hand type |
| Compressed air pressure | 0.6-0.8Mpa |
| Water pressure | ≥0.3Mpa |
| Configurations | Fabric feeding device, printing system, drying system and doffing device. |
Feature of Rotary Screen Printing Machine
1. The printing head has an open structure, simplifying the mounting and dismounting work and saving labor cost.
2. The magnetic platform is firm and durable and the magnetic rod offers stepless adjustment, suitable for fabrics with different weights.
3. With a human-computer interface, the control system is easy to operate.
4. Due to the automatic malfunction detecting function, it's easy and quick to locate and resolve machine problems.
5. The servo motor offers independent transmission, ensuring precise and reliable automatic registering.
6. The rotary screen can be lifted up from one side, easy to clean up and maintain.
7. Less waste and pollutants are discharged to the environment, thanks to the waste collection device.
8. Configured with globally-imported parts, the rotary screen printing system is reliable and stable.

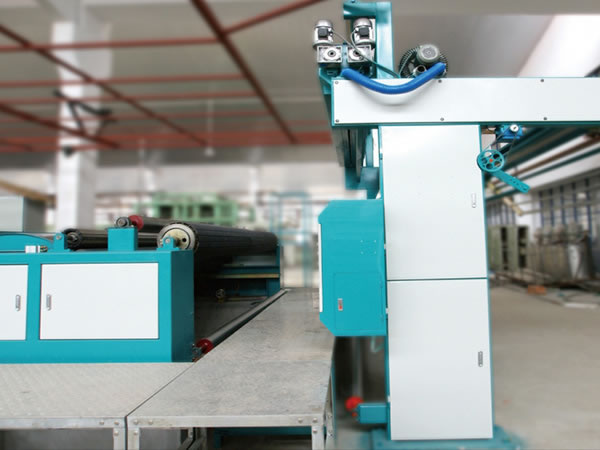

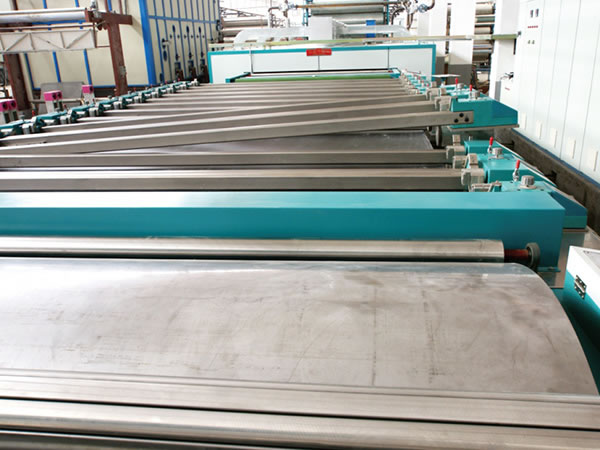

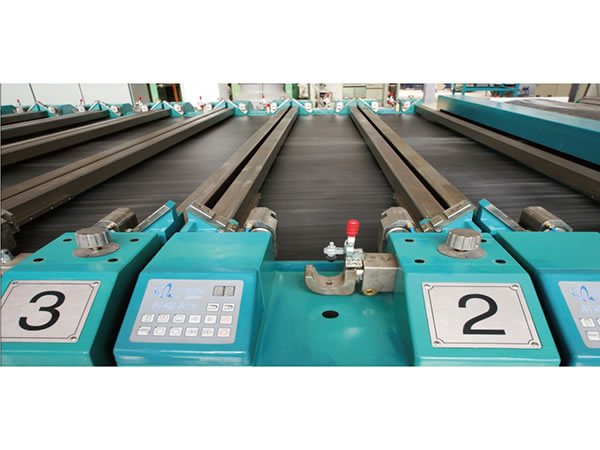

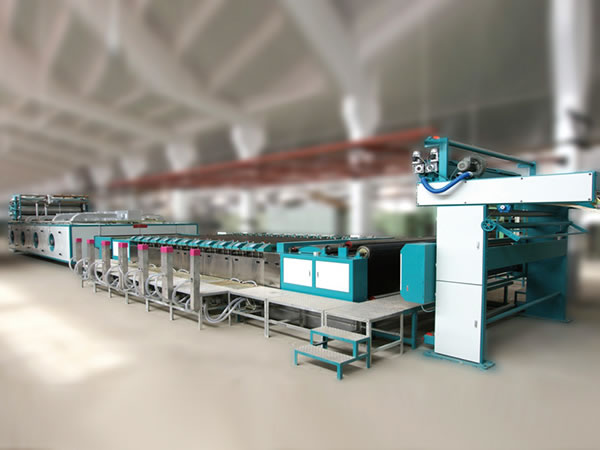

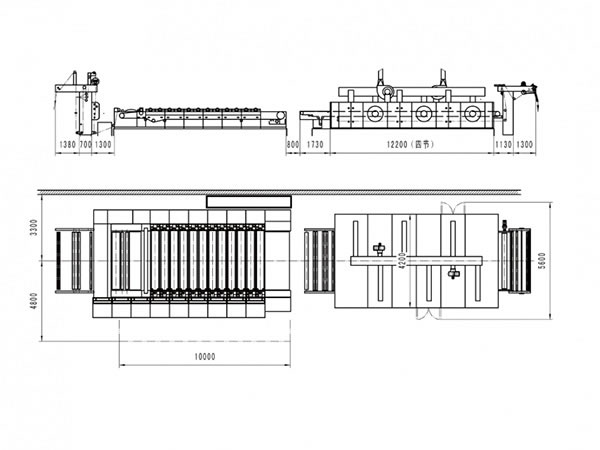

Detail Pictures of Rotary Screen Printing Machine
